这是一点of a chore toget to this year’s Consumer Electronics Show, but it was well worth the trouble. The challenge is seeing as much as possible and then writing about it. Here are a few things I saw early on, with a lot more to come.

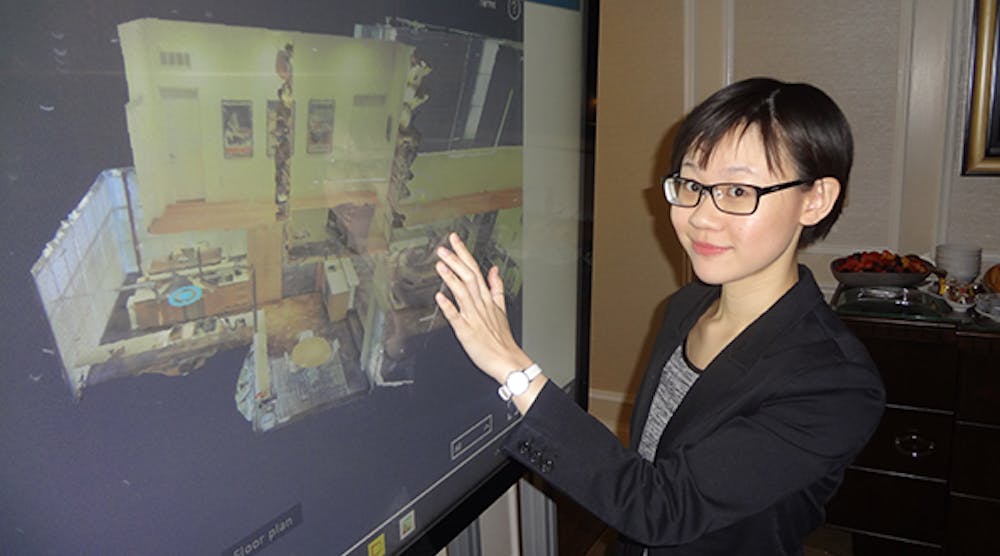

Cima NanoTech’sSANTE (self-assembling nanoparticle technology) technology supports very-large-screen capacitive touchscreens(Fig. 1)。它可以处理标准显示85我一样大n., and the technology can scale to even larger displays.
blogs1. Cima NanoTechâs SANTE technology is a self assembling-nanoparticle approach that can handle this 50-in. display.
Capacitive touch is faster and easily handles multitouch supporting dozens of simultaneous contact points, compared to one or two for infrared touchscreens currently used for large displays. The nano particles wind up in a random pattern eliminating the Moire effect that is often seen on more regular touch systems.
Automotive technology is getting ever more important at CES.Marvellwas highlighting 1000Baset-T1 Ethernet for the car(Fig. 2)。The new standard specifies the interface, but the cabling and connectors are likely to be custom for transportation applications. The maximum run length is shorter (usually 10 to 15 meters) than regular Ethernet on CAT5 or CAT6, but the twisted pair cables are a lot smaller and lower cost. It also easily covers most cars and many larger vehicles.
Automotive applications are the initial target for this network interface, andMarvellhas a 100 Base-T1 implementation, as well. It would be ideal for other application areas like robotics, where the smaller cabling would be very useful and the more limited connection length would not be an issue.
Finally, I sawNano Dimension’sDragonFly 2020 3D PCB printer create multilayer printed circuit boards(Fig. 3)。The printer uses inkjet technology combined with a unique pair of inks, including a silver nano particle and a dielectric ink. The printer can handle boards up to around 7-by-7 in.
The DragonFly uses an additive approach that builds up each layer. The dielectric ink contains a collection of two tiny particles that contain the two encapsulated parts of an epoxy. The printer deposits the ink, breaks the encapsulation, and allows the epoxy to harden. This forms the circuit board, while the silver ink provides the conductive surfaces and via’s. It does not need holes because of the way the way the PCB is created.
The system is ideal for prototypes and custom solutions. There were many challenges to overcome because the characteristics of the silver ink are different from copper that would be used in conventional PCB production. Having the same characteristics is important because the prototype needs to replicate the final product. One way this is done is by increasing the vertical (Z) height when using the silver ink.
This is all I have time to write about right now, as I am off to see more of what is at CES. So stay tuned: There will be more about each of these and the other products and technologies I get to check out at CES in the near future.
